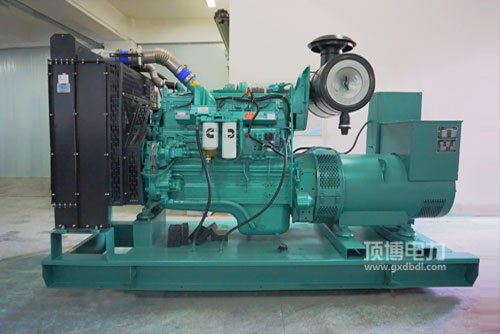

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电机组用打火机柴油生活性好: 优秀的柴油控住软件整体，别具一格 的STC、ESTC 定级控住软件整体，特有设置的活塞式边侧助燃室，髙压发射柴油，有效全面的做雾化，助燃有效全面的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯风能发电用热车机瞬态耐磨性市场大的: 完善的热车机整体结构设计，积极配合康明斯特有的EFC软件系统，掌控高精性高，崩溃时段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电机组用打火机升额定功率高: 整个设计构思省油的suv.外观设计分布合理可行，使用平稳性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷车型 QSNT. QSK19. QSK38. QSK50符合中非发展第3阶段中及美洲Tier2. Tier 3废气条例需求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件而犯性好， 起因素运营及运营维护保養快捷，生产成本费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

效率范围图 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L内部结构尺码 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的品质 Dry Weight   940kg

224-310KW康明斯发电机组用启心理的的特点：质量分数小， 收缩变高， 防雨百叶空气中加熱，更易打火，位移车载导航供电的安全可靠。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

汽车发倾向机型	常见工率(kW)Prime Power	紧急电机功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
